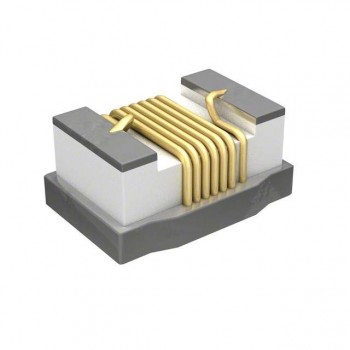

PE-0603CD820GTT

Technical Details

• Series:0603CD
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:Wirewound
• Material - Core:Ceramic
• Inductance:82 nH
• Tolerance:±2%
• Current Rating (Amps):400 mA
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):540mOhm Max

• Q @ Freq:34 @ 150MHz
• Frequency - Self Resonant:1.7GHz
• Ratings:-
• Operating Temperature:-40°C ~ 125°C
• Inductance Frequency - Test:150 MHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:0603 (1608 Metric)
• Supplier Device Package:0603 (1608 Metric)
• Size / Dimension:0.071" L x 0.049" W (1.80mm x 1.24mm)
• Height - Seated (Max):0.040" (1.02mm)
