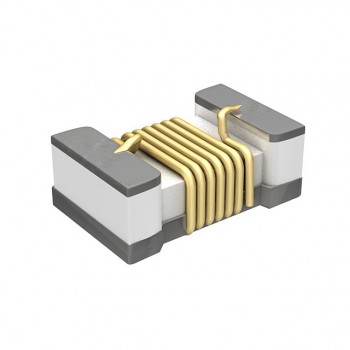

LQW04AN13NJ00D

Technical Details

• Series:LQW04
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:Wirewound
• Material - Core:-
• Inductance:13 nH
• Tolerance:±5%
• Current Rating (Amps):280 mA
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):340mOhm Max

• Q @ Freq:15 @ 250MHz
• Frequency - Self Resonant:6GHz
• Ratings:-
• Operating Temperature:-55°C ~ 125°C
• Inductance Frequency - Test:100 MHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:0302 (0804 Metric)
• Supplier Device Package:03015 (0804 Metric)
• Size / Dimension:0.031" L x 0.016" W (0.80mm x 0.40mm)
• Height - Seated (Max):0.018" (0.45mm)
