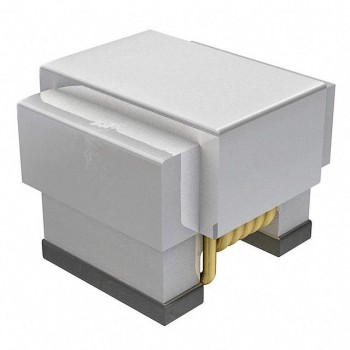

PE-0805CD080GTT

Technical Details

• Series:0805CD
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:Wirewound
• Material - Core:Ceramic
• Inductance:7.9 nH
• Tolerance:±2%
• Current Rating (Amps):600 mA
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):120mOhm Max

• Q @ Freq:50 @ 1GHz
• Frequency - Self Resonant:4.7GHz
• Ratings:-
• Operating Temperature:-40°C ~ 125°C
• Inductance Frequency - Test:250 MHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:0805 (2012 Metric)
• Supplier Device Package:0805 (2012 Metric)
• Size / Dimension:0.090" L x 0.066" W (2.29mm x 1.68mm)
• Height - Seated (Max):0.062" (1.58mm)
