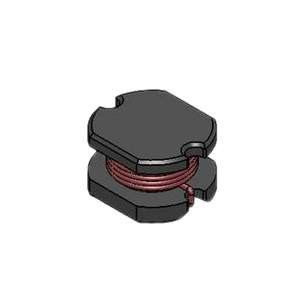

CD30D22HF-6R8MC
Sumida Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 6.8UH 1.28A 172 MOHM
- CategoryFixed Inductors
- Datasheet CD30D22HF-6R8MC Datasheet
-
ECAD Model
- Share
In Stock: 187
Can ship immediately
Pricing:
- 1$0.2512
- 3,000$0.2512
Quote It
Technical Details
- Series:CD30D22
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:6.8 µH
- Tolerance:±20%
- Current Rating (Amps):1.28 A
- Current - Saturation (Isat):1.28A
- Shielding:Unshielded
- DC Resistance (DCR):172mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.138" L x 0.118" W (3.50mm x 3.00mm)
- Height - Seated (Max):0.098" (2.50mm)
