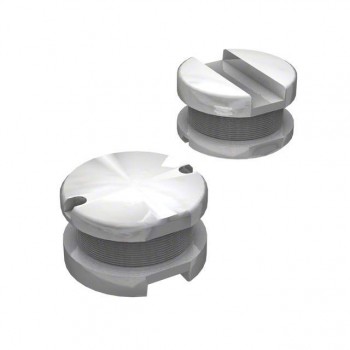

SDR0503-181KL

Technical Details

• Series:SDR0503
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:Wirewound
• Material - Core:Ferrite
• Inductance:180 µH
• Tolerance:±10%
• Current Rating (Amps):300 mA
• Current - Saturation (Isat):350mA
• Shielding:Unshielded
• DC Resistance (DCR):2.3Ohm Max

• Q @ Freq:40 @ 796kHz
• Frequency - Self Resonant:7MHz
• Ratings:-
• Operating Temperature:-40°C ~ 125°C
• Inductance Frequency - Test:1 kHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.197" L x 0.189" W (5.00mm x 4.80mm)
• Height - Seated (Max):0.130" (3.30mm)
