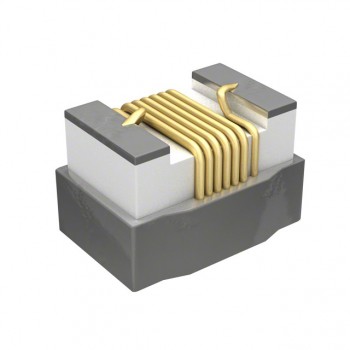

B82498F3470J001

Technical Details

• Series:SIMID
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:Wirewound
• Material - Core:Ceramic
• Inductance:47 nH
• Tolerance:±5%
• Current Rating (Amps):600 mA
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):130mOhm Max

• Q @ Freq:65 @ 500MHz
• Frequency - Self Resonant:2GHz
• Ratings:-
• Operating Temperature:-55°C ~ 125°C
• Inductance Frequency - Test:200 MHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:0805 (2012 Metric)
• Size / Dimension:0.091" L x 0.067" W (2.30mm x 1.70mm)
• Height - Seated (Max):0.055" (1.40mm)
