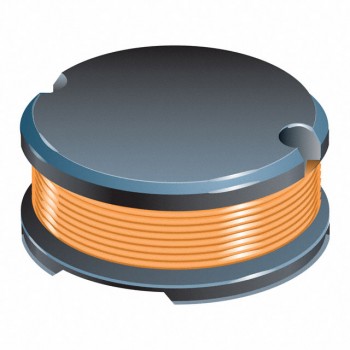

SDR1307A-121K
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 120UH 1.8A 210MOHM SMD
- CategoryFixed Inductors
- Datasheet SDR1307A-121K Datasheet
-
ECAD Model
- Share
In Stock: 182
Can ship immediately
Pricing:
- 1$0.495
- 1,600$0.495
Quote It
Technical Details
- Series:SDR1307A
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:120 µH
- Tolerance:±10%
- Current Rating (Amps):1.8 A
- Current - Saturation (Isat):2.8A
- Shielding:Unshielded
- DC Resistance (DCR):210mOhm Max
- Q @ Freq:20 @ 796kHz
- Frequency - Self Resonant:5.5MHz
- Ratings:AEC-Q200
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.512" Dia (13.00mm)
- Height - Seated (Max):0.287" (7.30mm)
