SDR1307A-4R7M

J.W. Miller / Bourns
In Stock: 148

Can ship immediately

Pricing:
  • 1$0.528
  • 1,600$0.495

Quote It

Technical Details

  • Series:SDR1307A
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:Wirewound
  • Material - Core:Ferrite
  • Inductance:4.7 µH
  • Tolerance:±20%
  • Current Rating (Amps):7 A
  • Current - Saturation (Isat):13A
  • Shielding:Unshielded
  • DC Resistance (DCR):10mOhm Max



  • Q @ Freq:25 @ 7.96MHz
  • Frequency - Self Resonant:36MHz
  • Ratings:AEC-Q200
  • Operating Temperature:-40°C ~ 125°C
  • Inductance Frequency - Test:100 kHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:Nonstandard
  • Supplier Device Package:-
  • Size / Dimension:0.512" Dia (13.00mm)
  • Height - Seated (Max):0.287" (7.30mm)

Related Products


SDR1307A-560K

FIXED IND 56UH 2.5A 100 MOHM SMD

SDR1307A-560K Datasheet
  • 1: $0.52800
  • 1600: $0.49500

SDR1307A-561K

FIXED IND 560UH 850MA 880MOHM SM

SDR1307A-561K Datasheet
  • 1: $0.52800
  • 1600: $0.49500

SDR1307A-5R6M

FIXED IND 5.6UH 6.5A 15 MOHM SMD

SDR1307A-5R6M Datasheet
  • 1: $0.52800
  • 1600: $0.49500

SDR1307A-681K

FIXED IND 680UH 800MA 1 OHM SMD

SDR1307A-681K Datasheet
  • 1: $0.52800
  • 1600: $0.49500

SDR1307A-6R8M

FIXED IND 6.8UH 6A 17 MOHM SMD

SDR1307A-6R8M Datasheet
  • 1: $0.52800
  • 1600: $0.49500

SDR1307A-820K

FIXED IND 82UH 2.1A 140 MOHM SMD

SDR1307A-820K Datasheet
  • 1: $0.52800
  • 1600: $0.49500

SDR1307A-821K

FIXED IND 820UH 750MA 1.3OHM SMD

SDR1307A-821K Datasheet
  • 1: $0.52800
  • 1600: $0.49500

HCM1A0503V2-R35-R

FIXED IND 350NH 14A 3.4 MOHM SMD

  • 1: $0.58080

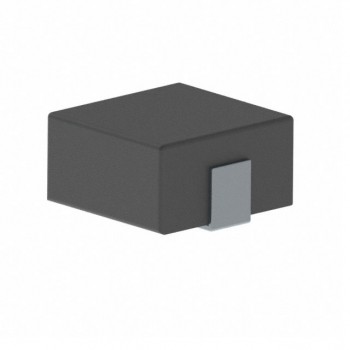

HCM1A0503V2-R68-R
