SRU1048A-8R2Y

J.W. Miller / Bourns
In Stock: 160

Can ship immediately

Pricing:
  • 1$0.5336
  • 2,400$0.4785

Quote It

Technical Details

  • Series:SRU1048A
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:Wirewound
  • Material - Core:Ferrite
  • Inductance:8.2 µH
  • Tolerance:±30%
  • Current Rating (Amps):4.6 A
  • Current - Saturation (Isat):3.8A
  • Shielding:Shielded
  • DC Resistance (DCR):20mOhm Max



  • Q @ Freq:8 @ 7.96MHz
  • Frequency - Self Resonant:18MHz
  • Ratings:AEC-Q200
  • Operating Temperature:-40°C ~ 125°C
  • Inductance Frequency - Test:100 kHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:Nonstandard
  • Supplier Device Package:-
  • Size / Dimension:0.394" L x 0.394" W (10.00mm x 10.00mm)
  • Height - Seated (Max):0.201" (5.10mm)

Related Products


1274AS-H-1R5N=P3

FIXED IND 1.5UH 8.9A 7.7 MOHM

1274AS-H-1R5N=P3 Datasheet
  • 1: $0.53370
  • 500: $ 0.53370
  • 1000: $0.47440

1274AS-H-5R6N=P3

FIXED IND

  • 1: $0.56038

SRR1005-220M

FIXED IND 22UH 1.4A 100 MOHM SMD

SRR1005-220M Datasheet
  • 1: $0.53460
  • 600: $0.49950

SRR1005-120M

FIXED IND 12UH 1.8A 80 MOHM SMD

SRR1005-120M Datasheet
  • 1: $0.53460
  • 600: $0.49950

SRR1005-121K

FIXED IND 120UH 600MA 460MOHM SM

SRR1005-121K Datasheet
  • 1: $0.53460
  • 600: $0.49950

SRR1005-180Y

FIXED IND 18UH 1.6A 90 MOHM SMD

SRR1005-180Y Datasheet
  • 1: $0.53460
  • 600: $0.49950

SRR1005-181K

FIXED IND 180UH 500MA 700MOHM SM

SRR1005-181K Datasheet
  • 1: $0.53460
  • 600: $0.49950

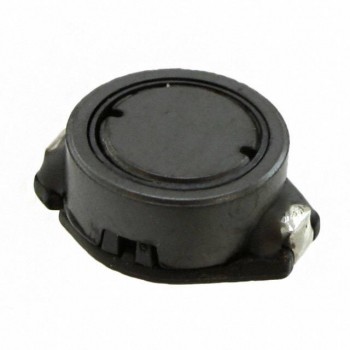

SRR1005-1R5M
