IHLP2525CZER1R0M06
Vishay / Dale
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1UH 11A 8.84 MOHM SMD
- CategoryFixed Inductors
- Datasheet IHLP2525CZER1R0M06 Datasheet
-
ECAD Model
- Share
In Stock: 170
Can ship immediately
Pricing:
- 1$0.544
- 2,000$0.544
- 4,000$0.52645
- 6,000$0.5089
Quote It
Technical Details
- Series:IHLP-2525CZ-06
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Molded
- Material - Core:-
- Inductance:1 µH
- Tolerance:±20%
- Current Rating (Amps):11 A
- Current - Saturation (Isat):22A
- Shielding:Shielded
- DC Resistance (DCR):8.84mOhm
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.270" L x 0.255" W (6.86mm x 6.47mm)
- Height - Seated (Max):0.118" (3.00mm)
Related Products
FIXED IND 1UH 11A 8.84 MOHM SMD
IHLP2525CZER1R0M07 Datasheet- 1: $0.54400
- 2000: $0.54400
- 4000: $0.52645
FIXED IND 1.5UH 9A 14.5 MOHM SMD
IHLP2525CZER1R5M06 Datasheet- 1: $0.54400
- 2000: $0.54400
- 4000: $0.52645
FIXED IND 1.5UH 9A 14.5 MOHM SMD
IHLP2525CZER1R5M07 Datasheet- 1: $0.54400
- 2000: $0.54400
- 4000: $0.52645
FIXED IND 4.7UH 5.5A 37.11 MOHM
IHLP2525CZER4R7M06 Datasheet- 1: $0.54400
- 2000: $0.54400
- 4000: $0.52645

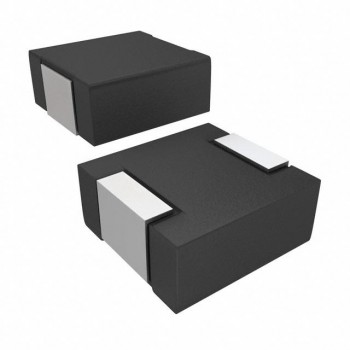

FIXED IND 4.7UH 5.5A 37.11 MOHM
