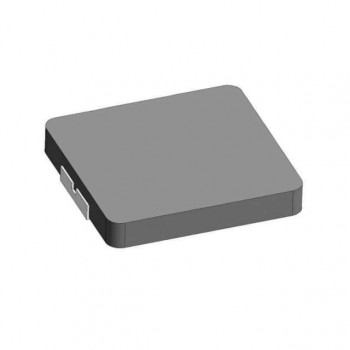

AMPLA7012Q-1R2MT
Abracon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1.2UH 5A 36 MOHM SMD
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 104
Can ship immediately
Pricing:
- 1$0.54461
Quote It
Technical Details
- Series:AMPLA7012Q
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Molded
- Material - Core:Carbonyl Powder
- Inductance:1.2 µH
- Tolerance:±20%
- Current Rating (Amps):5 A
- Current - Saturation (Isat):6.8A
- Shielding:Shielded
- DC Resistance (DCR):36mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.276" L x 0.260" W (7.00mm x 6.60mm)
- Height - Seated (Max):0.047" (1.20mm)
