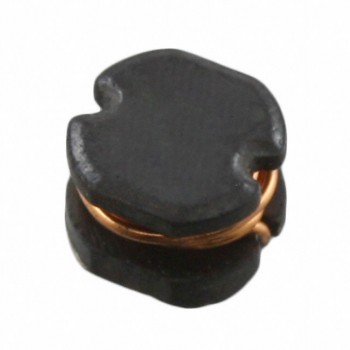

LD1-180-R
PowerStor (Eaton)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 18UH 830MA 338 MOHM
- CategoryFixed Inductors
- Datasheet LD1-180-R Datasheet
-
ECAD Model
- Share
In Stock: 133
Can ship immediately
Pricing:
- 1$0.5472
- 2,000$0.5248
Quote It
Technical Details
- Series:LD
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:18 µH
- Tolerance:±20%
- Current Rating (Amps):830 mA
- Current - Saturation (Isat):980mA
- Shielding:Unshielded
- DC Resistance (DCR):338mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.177" L x 0.157" W (4.50mm x 4.00mm)
- Height - Seated (Max):0.126" (3.20mm)
