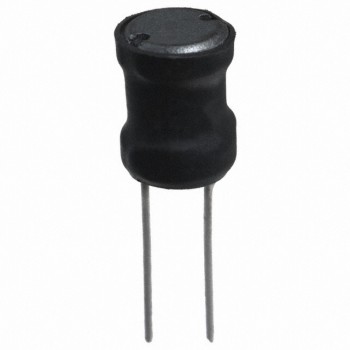

6100-821K-RC
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 820UH 690MA 1.44OHM TH
- CategoryFixed Inductors
- Datasheet 6100-821K-RC Datasheet
-
ECAD Model
- Share
In Stock: 116
Can ship immediately
Pricing:
- 1$0.55125
- 480$0.525
Quote It
Technical Details
- Series:6100
- Package:Tray
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:820 µH
- Tolerance:±10%
- Current Rating (Amps):690 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):1.44Ohm Max
- Q @ Freq:1.8 @ 796kHz
- Frequency - Self Resonant:1.8MHz
- Ratings:-
- Operating Temperature:-40°C ~ 105°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Through Hole
- Package / Case:Radial, Vertical Cylinder
- Supplier Device Package:-
- Size / Dimension:0.433" Dia (11.00mm)
- Height - Seated (Max):0.413" (10.50mm)
