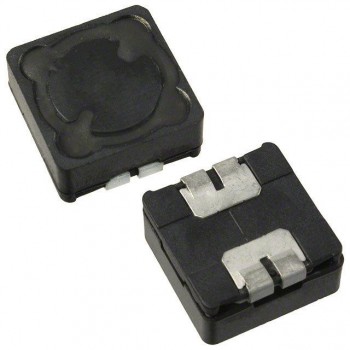

SRR1205-681KL

Technical Details

• Series:SRR1205
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:Wirewound
• Material - Core:Ferrite
• Inductance:680 µH
• Tolerance:±10%
• Current Rating (Amps):350 mA
• Current - Saturation (Isat):600mA
• Shielding:Shielded
• DC Resistance (DCR):2.4Ohm Max

• Q @ Freq:6 @ 796kHz
• Frequency - Self Resonant:1.5MHz
• Ratings:-
• Operating Temperature:-40°C ~ 125°C
• Inductance Frequency - Test:1 kHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.500" L x 0.500" W (12.70mm x 12.70mm)
• Height - Seated (Max):0.217" (5.50mm)
