SRR1206-7R5ML
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 7.5UH 3.8A 25 MOHM SMD
- CategoryFixed Inductors
- Datasheet SRR1206-7R5ML Datasheet
-
ECAD Model
- Share
In Stock: 127
Can ship immediately
Pricing:
- 1$0.5544
- 600$0.518
Quote It
Technical Details
- Series:SRR1206
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:7.5 µH
- Tolerance:±20%
- Current Rating (Amps):3.8 A
- Current - Saturation (Isat):6.9A
- Shielding:Shielded
- DC Resistance (DCR):25mOhm Max
- Q @ Freq:22 @ 7.96MHz
- Frequency - Self Resonant:22MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.500" L x 0.500" W (12.70mm x 12.70mm)
- Height - Seated (Max):0.256" (6.50mm)
Related Products
FIXED IND 220NH 25A 1.9MOHM SMD
- 1: $0.53900
FIXED IND 15UH 3.5A 92MOHM SMD
- 1: $0.53900
FIXED IND 22UH 2.5A 170MOHM SMD
- 1: $0.53900
FIXED IND 47UH 1.9A 330MOHM SMD
- 1: $0.53900

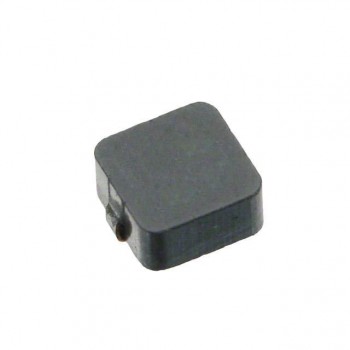

FIXED IND 560NH 6A 20.4 MOHM SMD
