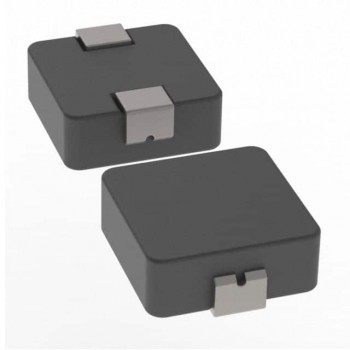

PM4342.152NLT
PulseLarsen Antenna
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1.5UH 16A 4.6 MOHM SMD
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 116
Can ship immediately
Pricing:
- 1$0.6138
Quote It
Technical Details
- Series:PM4342.XXXNLT
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Molded
- Material - Core:-
- Inductance:1.5 µH
- Tolerance:±20%
- Current Rating (Amps):16 A
- Current - Saturation (Isat):33A
- Shielding:Shielded
- DC Resistance (DCR):4.6mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.453" L x 0.406" W (11.50mm x 10.30mm)
- Height - Seated (Max):0.157" (4.00mm)
