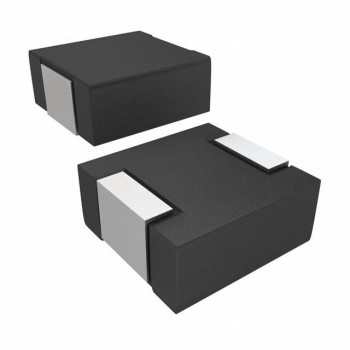

IHLP2525CZER4R7M51
Vishay / Dale
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 4.7UH 5.6A 38.4 MOHM
- CategoryFixed Inductors
- Datasheet IHLP2525CZER4R7M51 Datasheet
-
ECAD Model
- Share
In Stock: 175
Can ship immediately
Pricing:
- 1$0.5584
- 2,000$0.5584
- 4,000$0.54039
- 6,000$0.52237
- 10,000$0.50436
Quote It
Technical Details
- Series:IHLP-2525CZ-51
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Molded
- Material - Core:-
- Inductance:4.7 µH
- Tolerance:±20%
- Current Rating (Amps):5.6 A
- Current - Saturation (Isat):5.6A
- Shielding:Shielded
- DC Resistance (DCR):38.4mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:25.5MHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.270" L x 0.255" W (6.86mm x 6.47mm)
- Height - Seated (Max):0.118" (3.00mm)
