B82442T1125J000

TDK EPCOS
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionFIXED IND 1.2MH 140MA 12.6 OHM
  • CategoryFixed Inductors
  • ECAD Model
  • Share
In Stock: 134

Can ship immediately

Pricing:
  • 1$0.63184

Quote It

Technical Details

  • Series:SIMID
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Type:Wirewound
  • Material - Core:Ferrite
  • Inductance:1.2 mH
  • Tolerance:±5%
  • Current Rating (Amps):140 mA
  • Current - Saturation (Isat):290mA
  • Shielding:Unshielded
  • DC Resistance (DCR):12.6Ohm Max



  • Q @ Freq:30 @ 252kHz
  • Frequency - Self Resonant:1.7MHz
  • Ratings:AEC-Q200
  • Operating Temperature:-55°C ~ 150°C
  • Inductance Frequency - Test:252 kHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:2-SMD, J-Lead
  • Supplier Device Package:-
  • Size / Dimension:0.220" L x 0.197" W (5.60mm x 5.00mm)
  • Height - Seated (Max):0.209" (5.30mm)

Related Products


B82442T1106J000

FIXED IND 10MH 46MA 112 OHM SMD

  • 1: $0.63184

CR75NP-1R0MC

FIXED IND 1UH 6A 15.6 MOHM SMD

CR75NP-1R0MC Datasheet
  • 1: $0.57600
  • 1000: $0.57600

CR75NP-1R8MC

FIXED IND 1.8UH 4.5A 19.5 MOHM

CR75NP-1R8MC Datasheet
  • 1: $0.57600
  • 1000: $0.57600

IHLP2525AHER2R2M01

FIXED IND 2.2UH 3.75A 46 MOHM

IHLP2525AHER2R2M01 Datasheet
  • 1: $0.57600
  • 2000: $0.57600
  • 4000: $0.55742

IHLP2525AHER2R5M01

FIXED IND 2.5UH 3.5A 52.4 MOHM

IHLP2525AHER2R5M01 Datasheet
  • 1: $0.57600
  • 2000: $0.57600
  • 4000: $0.55742

IHLP2525AHER3R3M01

FIXED IND 3.3UH 3.25A 60.1 MOHM

IHLP2525AHER3R3M01 Datasheet
  • 1: $0.57600
  • 2000: $0.57600
  • 4000: $0.55742

IHLP2525AHERR10M01

FIXED IND 100NH 18A 3.5 MOHM SMD

IHLP2525AHERR10M01 Datasheet
  • 1: $0.57600
  • 2000: $0.57600
  • 4000: $0.55742

IHLP2525AHERR15M01

FIXED IND 150NH 15A 5.2 MOHM SMD

IHLP2525AHERR15M01 Datasheet
  • 1: $0.57600
  • 2000: $0.57600
  • 4000: $0.55742

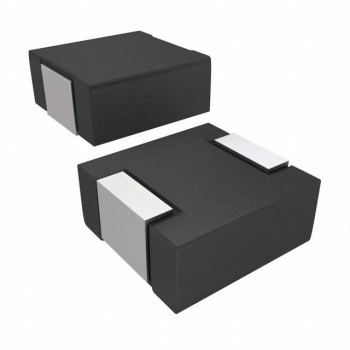

IHLP2525AHERR22M01
