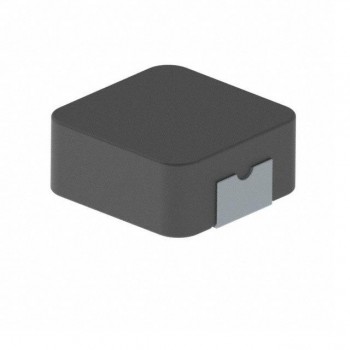

HCM1A0703V2-6R8-R
PowerStor (Eaton)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 6.8UH 3.6A 65 MOHM SMD
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 154
Can ship immediately
Pricing:
- 1$0.6336
Quote It
Technical Details
- Series:HCM1AV2
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:-
- Material - Core:Iron Powder
- Inductance:6.8 µH
- Tolerance:±20%
- Current Rating (Amps):3.6 A
- Current - Saturation (Isat):5.6A
- Shielding:Shielded
- DC Resistance (DCR):65mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:16MHz
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 155°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.276" L x 0.260" W (7.00mm x 6.60mm)
- Height - Seated (Max):0.118" (3.00mm)
