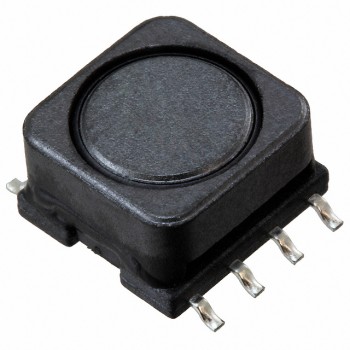

SRR0906-390ML
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 39UH 1.1A 160 MOHM SMD
- CategoryFixed Inductors
- Datasheet SRR0906-390ML Datasheet
-
ECAD Model
- Share
In Stock: 159
Can ship immediately
Pricing:
- 1$0.5808
- 1,200$0.5445
Quote It
Technical Details
- Series:SRR0906
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:39 µH
- Tolerance:±20%
- Current Rating (Amps):1.1 A
- Current - Saturation (Isat):1.4A
- Shielding:Shielded
- DC Resistance (DCR):160mOhm Max
- Q @ Freq:35 @ 2.52MHz
- Frequency - Self Resonant:14MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:8-SMD, Gull Wing
- Supplier Device Package:-
- Size / Dimension:0.394" L x 0.374" W (10.00mm x 9.50mm)
- Height - Seated (Max):0.248" (6.30mm)
