In Stock: 167

Can ship immediately

Pricing:
  • 1$0.58352
  • 2,000$0.58352

Quote It

Technical Details

  • Series:3639, Sigma Inductors
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Type:-
  • Material - Core:Ferrite
  • Inductance:10 µH
  • Tolerance:±30%
  • Current Rating (Amps):3.5 A
  • Current - Saturation (Isat):2.7A
  • Shielding:Shielded
  • DC Resistance (DCR):40mOhm Max



  • Q @ Freq:27 @ 2.52MHz
  • Frequency - Self Resonant:20MHz
  • Ratings:-
  • Operating Temperature:-40°C ~ 105°C
  • Inductance Frequency - Test:100 kHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:Nonstandard
  • Supplier Device Package:SMD
  • Size / Dimension:0.315" L x 0.315" W (8.00mm x 8.00mm)
  • Height - Seated (Max):0.181" (4.60mm)

Related Products


AIAP-03-4R7K

FIXED IND 4.7UH 13.9A 8 MOHM TH

AIAP-03-4R7K Datasheet
  • 1: $0.58368
  • 10: $0.54199
  • 25: $0.50030

AIAP-03-5R6K

FIXED IND 5.6UH 12.6A 11 MOHM TH

AIAP-03-5R6K Datasheet
  • 1: $0.58368
  • 10: $0.54199
  • 100: $0.39190

AIAP-03-150K

FIXED IND 15UH 7.34A 22 MOHM TH

AIAP-03-150K Datasheet
  • 1: $0.58368
  • 1000: $0.58368

AIAP-03-390K

FIXED IND 39UH 4.36A 33 MOHM TH

AIAP-03-390K Datasheet
  • 1: $0.58368
  • 10: $0.54199
  • 100: $0.39190

AIAP-03-181K

FIXED IND 180UH 1.98A 150 MOHM

AIAP-03-181K Datasheet
  • 1: $0.58368
  • 1000: $0.58368

AIAP-03-271K

FIXED IND 270UH 1.63A 208 MOHM

AIAP-03-271K Datasheet
  • 1: $0.58368
  • 1000: $0.58368

AIAP-03-391K

FIXED IND 390UH 1.39A 281 MOHM

AIAP-03-391K Datasheet
  • 1: $0.58368
  • 1000: $0.58368

AIAP-03-122K

FIXED IND 1.2MH 790MA 1.04 OHM

AIAP-03-122K Datasheet
  • 1: $0.58368
  • 1000: $0.58368

AIAP-03-332K

FIXED IND 3.3MH 470MA 2.63 OHM

AIAP-03-332K Datasheet
  • 1: $0.58368
  • 1000: $0.58368

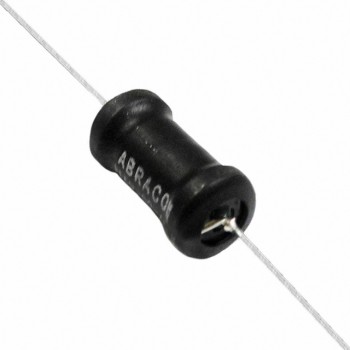

AIAP-03-472K
