SRP7030-R22M

J.W. Miller / Bourns
In Stock: 197

Can ship immediately

Pricing:
  • 1$0.592
  • 1,000$0.5032
  • 3,000$0.4921

Quote It

Technical Details

  • Series:SRP7030
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:Wirewound
  • Material - Core:Iron
  • Inductance:220 nH
  • Tolerance:±20%
  • Current Rating (Amps):23 A
  • Current - Saturation (Isat):36A
  • Shielding:Shielded
  • DC Resistance (DCR):2.8mOhm Max



  • Q @ Freq:-
  • Frequency - Self Resonant:-
  • Ratings:-
  • Operating Temperature:-55°C ~ 150°C
  • Inductance Frequency - Test:100 kHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:Nonstandard
  • Supplier Device Package:-
  • Size / Dimension:0.307" L x 0.276" W (7.80mm x 7.00mm)
  • Height - Seated (Max):0.126" (3.20mm)

Related Products


SRP4020-4R3M

FIXED INDUCTOR 4.3UH SMD

SRP4020-4R3M Datasheet
  • 1: $0.59200
  • 2000: $0.56240

SRP4020-R82M

FIXED INDUCTOR 820NH SMD

SRP4020-R82M Datasheet
  • 1: $0.59200
  • 2000: $0.56240

SRP7030-1R8M

FIXED IND 1.8UH 8.5A 17 MOHM SMD

SRP7030-1R8M Datasheet
  • 1: $0.59200
  • 1000: $0.59200

SRP7030-6R2FM

FIXED INDUCTOR 6.2UH SMD

SRP7030-6R2FM Datasheet
  • 1: $0.59200
  • 1000: $0.56240

CDR7D28MNNP-2R7NC

FIXED IND 2.7UH 3.7A 27.5 MOHM

CDR7D28MNNP-2R7NC Datasheet
  • 1: $0.59200
  • 1000: $0.59200

CMD4D06NP-4R7MC

FIXED IND 4.7UH 750MA 216 MOHM

CMD4D06NP-4R7MC Datasheet
  • 1: $0.59200
  • 1000: $0.59200

CDR7D43MNNP-270NC

FIXED IND 27UH 1.25A 143.6 MOHM

CDR7D43MNNP-270NC Datasheet
  • 1: $0.59200
  • 1000: $0.59200

SRP7030-R82M

FIXED IND 820NH 13A 8 MOHM SMD

SRP7030-R82M Datasheet
  • 1: $0.59200
  • 1000: $ 0.50320
  • 3000: $0.49210

CDR7D28MNNP-680NC

FIXED IND 68UH 780MA 425 MOHM

CDR7D28MNNP-680NC Datasheet
  • 1: $0.59200
  • 1000: $0.59200

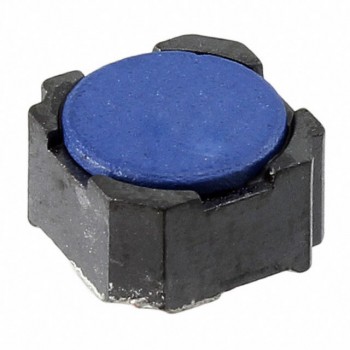

CDR7D43MNNP-101NC
