ISC1812ES271J

Vishay / Dale
In Stock: 144

Can ship immediately

Pricing:
  • 1$0.6
  • 2,000$0.6
  • 4,000$0.58125
  • 6,000$0.5625
  • 10,000$0.54375

Quote It

Technical Details

  • Series:ISC-1812
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Type:Wirewound
  • Material - Core:Ferrite
  • Inductance:270 µH
  • Tolerance:±5%
  • Current Rating (Amps):101 mA
  • Current - Saturation (Isat):-
  • Shielding:Shielded
  • DC Resistance (DCR):6.9Ohm Max



  • Q @ Freq:40 @ 796kHz
  • Frequency - Self Resonant:4MHz
  • Ratings:-
  • Operating Temperature:-55°C ~ 125°C
  • Inductance Frequency - Test:796 kHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:1812 (4532 Metric)
  • Supplier Device Package:1812
  • Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Height - Seated (Max):0.134" (3.40mm)

Related Products


ISC1812ES331J

FIXED IND 330UH 96MA 7.54 OHM

ISC1812ES331J Datasheet
  • 1: $0.60000
  • 2000: $0.60000
  • 4000: $0.58125

ISC1812ET100K

FIXED IND 10UH 279MA 900 MOHM

ISC1812ET100K Datasheet
  • 1: $0.60000
  • 1000: $0.60000
  • 2500: $0.58125

ISC1812ET1R0K

FIXED IND 1UH 447MA 350 MOHM SMD

ISC1812ET1R0K Datasheet
  • 1: $0.60000
  • 1000: $0.60000
  • 2500: $0.58125

ISC1812ET2R2K

FIXED IND 2.2UH 390MA 460 MOHM

ISC1812ET2R2K Datasheet
  • 1: $0.60000
  • 1000: $0.60000
  • 2500: $0.58125

ISC1812ET2R7K

FIXED IND 2.7UH 378MA 490 MOHM

ISC1812ET2R7K Datasheet
  • 1: $0.60000
  • 1000: $0.60000
  • 2500: $0.58125

ISC1812ET3R3K

FIXED IND 3.3UH 357MA 550 MOHM

ISC1812ET3R3K Datasheet
  • 1: $0.60000
  • 1000: $0.60000
  • 2500: $0.58125

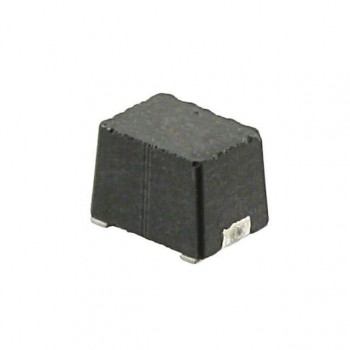

ISC1812ET4R7K
