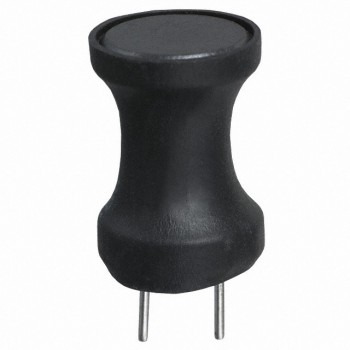

RL824-391K-RC
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 390UH 520MA 560MOHM TH
- CategoryFixed Inductors
- Datasheet RL824-391K-RC Datasheet
-
ECAD Model
- Share
In Stock: 106
Can ship immediately
Pricing:
- 1$0.6048
- 1,000$0.576
Quote It
Technical Details
- Series:RL824
- Package:Bulk
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:390 µH
- Tolerance:±10%
- Current Rating (Amps):520 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):560mOhm Max
- Q @ Freq:35 @ 790kHz
- Frequency - Self Resonant:1.4MHz
- Ratings:-
- Operating Temperature:-55°C ~ 105°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Through Hole
- Package / Case:Radial, Vertical Cylinder
- Supplier Device Package:-
- Size / Dimension:0.413" Dia (10.50mm)
- Height - Seated (Max):0.610" (15.50mm)
