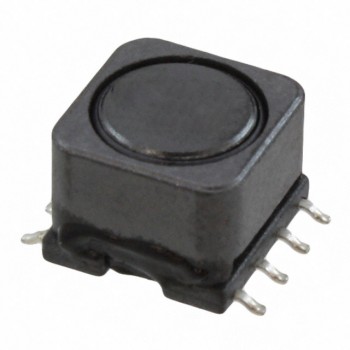

SRR0908-470ML
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 47UH 1.4A 150 MOHM SMD
- CategoryFixed Inductors
- Datasheet SRR0908-470ML Datasheet
-
ECAD Model
- Share
In Stock: 149
Can ship immediately
Pricing:
- 1$0.616
- 1,200$0.5775
Quote It
Technical Details
- Series:SRR0908
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:47 µH
- Tolerance:±20%
- Current Rating (Amps):1.4 A
- Current - Saturation (Isat):2.3A
- Shielding:Shielded
- DC Resistance (DCR):150mOhm Max
- Q @ Freq:40 @ 2.52MHz
- Frequency - Self Resonant:4MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:8-SMD, Gull Wing
- Supplier Device Package:-
- Size / Dimension:0.394" L x 0.374" W (10.00mm x 9.50mm)
- Height - Seated (Max):0.307" (7.80mm)
