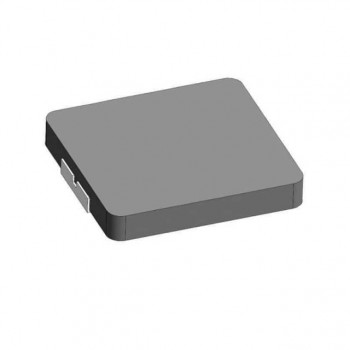

AMPLA7030Q-8R2MT
Abracon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 8.2UH 4A 68 MOHM SMD
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 160
Can ship immediately
Pricing:
- 1$0.61901
Quote It
Technical Details
- Series:AMPLA7030Q
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Molded
- Material - Core:Carbonyl Powder
- Inductance:8.2 µH
- Tolerance:±20%
- Current Rating (Amps):4 A
- Current - Saturation (Isat):7.5A
- Shielding:Shielded
- DC Resistance (DCR):68mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.287" L x 0.260" W (7.30mm x 6.60mm)
- Height - Seated (Max):0.118" (3.00mm)
