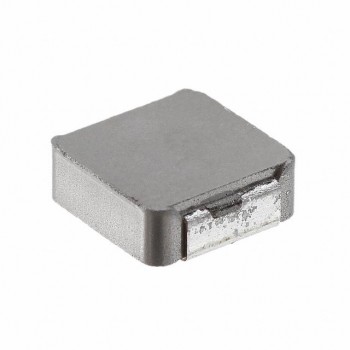

IHLP3232CZER8R2M11
Vishay / Dale
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 8.2UH 5.9A 46.7 MOHM
- CategoryFixed Inductors
- Datasheet IHLP3232CZER8R2M11 Datasheet
-
ECAD Model
- Share
In Stock: 125
Can ship immediately
Pricing:
- 1$0.624
- 1,000$0.624
- 3,000$0.6045
- 5,000$0.585
- 10,000$0.5655
Quote It
Technical Details
- Series:IHLP-3232CZ-11
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Molded
- Material - Core:-
- Inductance:8.2 µH
- Tolerance:±20%
- Current Rating (Amps):5.9 A
- Current - Saturation (Isat):4.2A
- Shielding:Shielded
- DC Resistance (DCR):46.7mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:16MHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.340" L x 0.322" W (8.64mm x 8.18mm)
- Height - Seated (Max):0.118" (3.00mm)
