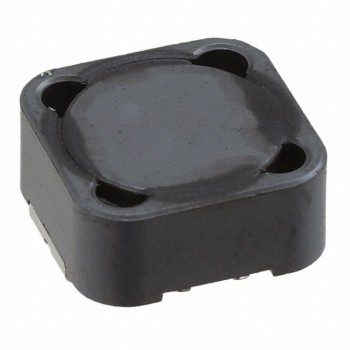

CDRH124NP-560MC
Sumida Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 56UH 1.8A 190 MOHM SMD
- CategoryFixed Inductors
- Datasheet CDRH124NP-560MC Datasheet
-
ECAD Model
- Share
In Stock: 134
Can ship immediately
Pricing:
- 1$0.63
- 500$0.63
Quote It
Technical Details
- Series:CDRH124
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:-
- Material - Core:Ferrite
- Inductance:56 µH
- Tolerance:±20%
- Current Rating (Amps):1.8 A
- Current - Saturation (Isat):-
- Shielding:Shielded
- DC Resistance (DCR):190mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 100°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.472" L x 0.472" W (12.00mm x 12.00mm)
- Height - Seated (Max):0.177" (4.50mm)
