B82442H1564K000

TDK EPCOS
In Stock: 132

Can ship immediately

Pricing:
  • 1$0.74509
  • 3,000$0.56334

Quote It

Technical Details

  • Series:SIMID
  • Package:Tape & Reel (TR)
  • Part Status:Last Time Buy
  • Type:Wirewound
  • Material - Core:Ferrite
  • Inductance:560 µH
  • Tolerance:±10%
  • Current Rating (Amps):150 mA
  • Current - Saturation (Isat):-
  • Shielding:Unshielded
  • DC Resistance (DCR):6.8Ohm Max



  • Q @ Freq:20 @ 796kHz
  • Frequency - Self Resonant:2.4MHz
  • Ratings:AEC-Q200
  • Operating Temperature:-55°C ~ 150°C
  • Inductance Frequency - Test:796 kHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:2-SMD, J-Lead
  • Supplier Device Package:2220 (5650 Metric)
  • Size / Dimension:0.220" L x 0.197" W (5.60mm x 5.00mm)
  • Height - Seated (Max):0.209" (5.30mm)

Related Products


B82442H1565K000

FIXED IND 5.6MH 46MA 68 OHM SMD

B82442H1565K000 Datasheet
  • 1: $0.74509
  • 3000: $0.56334

B82442H1683K000

FIXED IND 68UH 400MA 960 MOHM

B82442H1683K000 Datasheet
  • 1: $0.74509
  • 3000: $0.56334

B82442H1684K000

FIXED IND 680UH 140MA 8 OHM SMD

B82442H1684K000 Datasheet
  • 1: $0.74509
  • 3000: $0.56334

B82442H1685K000

FIXED IND 6.8MH 42MA 88 OHM SMD

B82442H1685K000 Datasheet
  • 1: $0.74509
  • 3000: $0.56334

B82442H1822K000

FIXED IND 8.2UH 1.05A 144 MOHM

B82442H1822K000 Datasheet
  • 1: $0.74509
  • 3000: $0.56334

B82442H1823K000

FIXED IND 82UH 380MA 1.12 OHM

B82442H1823K000 Datasheet
  • 1: $0.74509
  • 3000: $0.56334

B82442H1824K000

FIXED IND 820UH 130MA 10.4 OHM

B82442H1824K000 Datasheet
  • 1: $0.74509
  • 3000: $0.56334

B82442H1825K000

FIXED IND 8.2MH 39MA 100 OHM SMD

B82442H1825K000 Datasheet
  • 1: $0.74509
  • 3000: $0.56334

B82442H1152K000

FIXED IND 1.5UH 2.2A 32 MOHM SMD

B82442H1152K000 Datasheet
  • 1: $1.68000
  • 1500: $0.58047
  • 3000: $0.56233

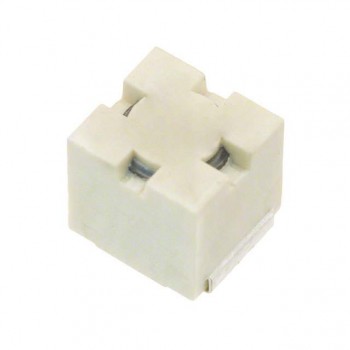

B82442H1332K000
