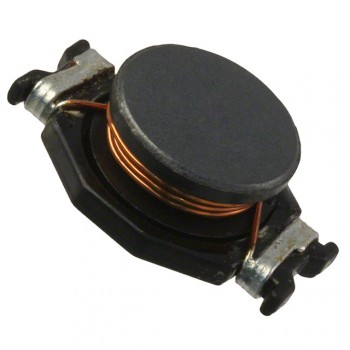

SDR2207-8R2ML
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 8.2UH 7A 15.5 MOHM SMD
- CategoryFixed Inductors
- Datasheet SDR2207-8R2ML Datasheet
-
ECAD Model
- Share
In Stock: 150
Can ship immediately
Pricing:
- 1$0.693
- 250$0.693
Quote It
Technical Details
- Series:SDR2207
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:8.2 µH
- Tolerance:±20%
- Current Rating (Amps):7 A
- Current - Saturation (Isat):11A
- Shielding:Unshielded
- DC Resistance (DCR):15.5mOhm Max
- Q @ Freq:35 @ 3MHz
- Frequency - Self Resonant:25MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.866" L x 0.591" W (22.00mm x 15.00mm)
- Height - Seated (Max):0.307" (7.80mm)
