IHLM2525CZER6R8M01
Vishay / Dale
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 6.8UH 4.5A 60 MOHM SMD
- CategoryFixed Inductors
- Datasheet IHLM2525CZER6R8M01 Datasheet
-
ECAD Model
- Share
In Stock: 138
Can ship immediately
Pricing:
- 1$0.736
- 2,000$0.736
- 4,000$0.713
- 6,000$0.69
- 10,000$0.667
Quote It
Technical Details
- Series:IHLM-2525CZ-01
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:-
- Material - Core:-
- Inductance:6.8 µH
- Tolerance:±20%
- Current Rating (Amps):4.5 A
- Current - Saturation (Isat):8A
- Shielding:Shielded
- DC Resistance (DCR):60mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.270" L x 0.255" W (6.86mm x 6.47mm)
- Height - Seated (Max):0.118" (3.00mm)
Related Products
FIXED IND 150NH 26A 2.5 MOHM SMD
IHLM2525CZERR15M01 Datasheet- 1: $0.73600
- 2000: $0.73600
- 4000: $0.71300

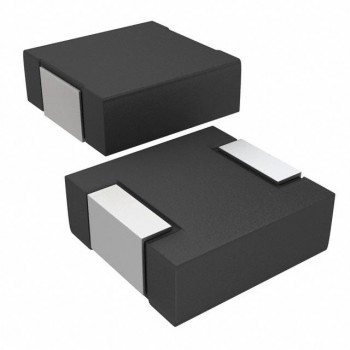

FIXED IND 220NH 23A 2.8 MOHM SMD
