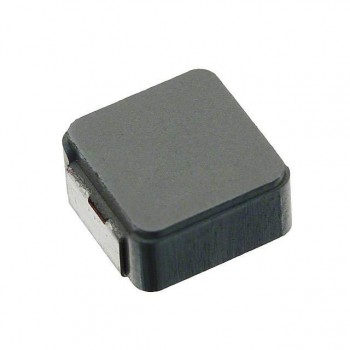

IHLP3232DZERR68M51
Vishay / Dale
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 680NH 21.5A 3.53 MOHM
- CategoryFixed Inductors
- Datasheet IHLP3232DZERR68M51 Datasheet
-
ECAD Model
- Share
In Stock: 108
Can ship immediately
Pricing:
- 1$0.738
- 500$0.738
- 1,000$0.656
- 2,500$0.6355
- 5,000$0.615
- 12,500$0.5945
Quote It
Technical Details
- Series:IHLP-3232DZ-51
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Molded
- Material - Core:-
- Inductance:680 nH
- Tolerance:±20%
- Current Rating (Amps):21.5 A
- Current - Saturation (Isat):16.2A
- Shielding:Shielded
- DC Resistance (DCR):3.53mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:51MHz
- Ratings:-
- Operating Temperature:-55°C ~ 155°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.322" L x 0.322" W (8.18mm x 8.18mm)
- Height - Seated (Max):0.157" (4.00mm)
