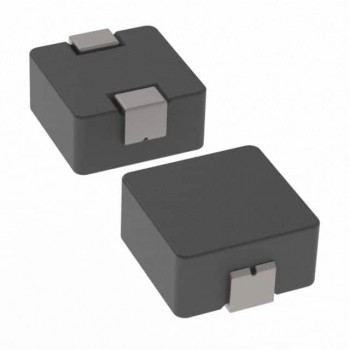

PM4343.501NLT
PulseLarsen Antenna
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 500NH 40A 1.25 MOHM
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 106
Can ship immediately
Pricing:
- 1$0.8184
Quote It
Technical Details
- Series:PM4343.XXXNLT
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Molded
- Material - Core:-
- Inductance:500 nH
- Tolerance:±20%
- Current Rating (Amps):40 A
- Current - Saturation (Isat):60A
- Shielding:Shielded
- DC Resistance (DCR):1.25mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:AEC-Q200
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.551" L x 0.504" W (14.00mm x 12.80mm)
- Height - Seated (Max):0.256" (6.50mm)
