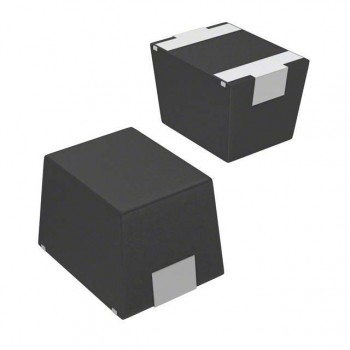

IMC1210BNR82K
Vishay / Dale
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 820NH 450MA 670 MOHM
- CategoryFixed Inductors
- Datasheet IMC1210BNR82K Datasheet
-
ECAD Model
- Share
In Stock: 153
Can ship immediately
Pricing:
- 1$0.7488
- 500$0.7488
- 1,000$0.6656
- 2,500$0.6448
Quote It
Technical Details
- Series:IMC-1210
- Package:Bulk
- Part Status:Active
- Type:Wirewound
- Material - Core:Iron Powder
- Inductance:820 nH
- Tolerance:±10%
- Current Rating (Amps):450 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):670mOhm Max
- Q @ Freq:30 @ 25.2MHz
- Frequency - Self Resonant:140MHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:25.2 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1210 (3225 Metric)
- Supplier Device Package:1210
- Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.49mm)
- Height - Seated (Max):0.095" (2.41mm)
