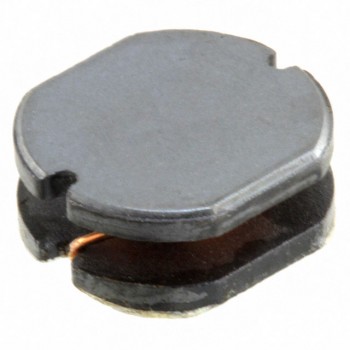

CD104NP-220MC

Technical Details

• Series:CD104
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:-
• Material - Core:-
• Inductance:22 µH
• Tolerance:±20%
• Current Rating (Amps):1.6 A
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):88mOhm Max

• Q @ Freq:-
• Frequency - Self Resonant:20MHz
• Ratings:-
• Operating Temperature:-40°C ~ 100°C
• Inductance Frequency - Test:2.52 MHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.394" L x 0.354" W (10.00mm x 9.00mm)
• Height - Seated (Max):0.177" (4.50mm)
