VLF403215MT-3R3M
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 3.3UH 2.65A 62 MOHM
- CategoryFixed Inductors
- Datasheet VLF403215MT-3R3M Datasheet
-
ECAD Model
- Share
In Stock: 165
Can ship immediately
Pricing:
- 1$1.66
- 1,000$0.7568
- 3,000$0.73315
- 5,000$0.7095
- 10,000$0.68585
Quote It
Technical Details
- Series:VLF-M
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:3.3 µH
- Tolerance:±20%
- Current Rating (Amps):2.65 A
- Current - Saturation (Isat):1.65A
- Shielding:Shielded
- DC Resistance (DCR):62mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 105°C
- Inductance Frequency - Test:1 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.157" L x 0.126" W (4.00mm x 3.20mm)
- Height - Seated (Max):0.059" (1.50mm)
Related Products

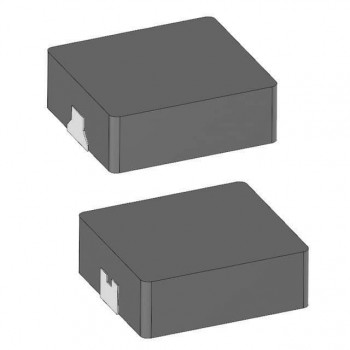

IND 5.6UH 8A 22.8MOHM SMD
