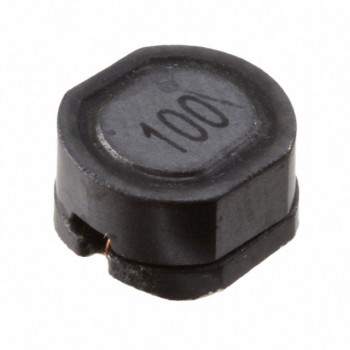

PM74SB-150M-RC

Technical Details

• Series:PM74SB
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:Wirewound
• Material - Core:Ferrite
• Inductance:15 µH
• Tolerance:±20%
• Current Rating (Amps):1.39 A
• Current - Saturation (Isat):1.68A
• Shielding:Shielded
• DC Resistance (DCR):80mOhm Max

• Q @ Freq:-
• Frequency - Self Resonant:20MHz
• Ratings:-
• Operating Temperature:-40°C ~ 125°C
• Inductance Frequency - Test:100 kHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.307" L x 0.276" W (7.80mm x 7.00mm)
• Height - Seated (Max):0.193" (4.90mm)
