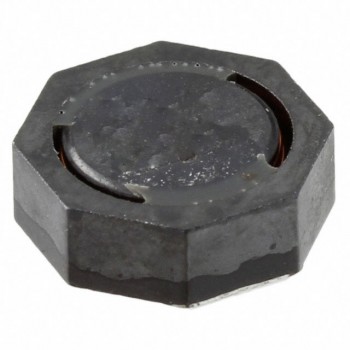

PM104SH-1R5-RC
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1.5UH 7.2A 5.2MOHM SMD
- CategoryFixed Inductors
- Datasheet PM104SH-1R5-RC Datasheet
-
ECAD Model
- Share
In Stock: 177
Can ship immediately
Pricing:
- 1$0.775
- 1,000$0.775
Quote It
Technical Details
- Series:PM104SH
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:1.5 µH
- Tolerance:±30%
- Current Rating (Amps):7.2 A
- Current - Saturation (Isat):7A
- Shielding:Shielded
- DC Resistance (DCR):5.2mOhm Max
- Q @ Freq:14 @ 7.96MHz
- Frequency - Self Resonant:65MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:7.96 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.394" L x 0.394" W (10.00mm x 10.00mm)
- Height - Seated (Max):0.161" (4.10mm)
