AX97-20100
Triad Magnetics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 10UH 2A 70 MOHM SMD
- CategoryFixed Inductors
- Datasheet AX97-20100 Datasheet
-
ECAD Model
- Share
In Stock: 152
Can ship immediately
Pricing:
- 1$0.7905
- 1,000$0.78275
Quote It
Technical Details
- Series:AX97
- Package:Box
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:10 µH
- Tolerance:±20%
- Current Rating (Amps):2 A
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):70mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 85°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:SMD
- Size / Dimension:0.530" L x 0.370" W (13.46mm x 9.40mm)
- Height - Seated (Max):0.138" (3.50mm)
Related Products

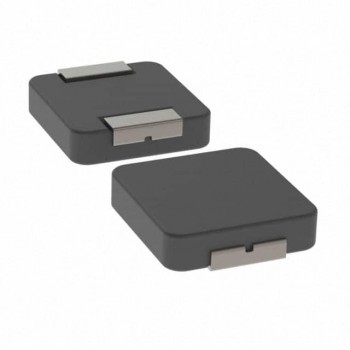

FIXED IND 1.8UH 21A 4.9 MOHM SMD
