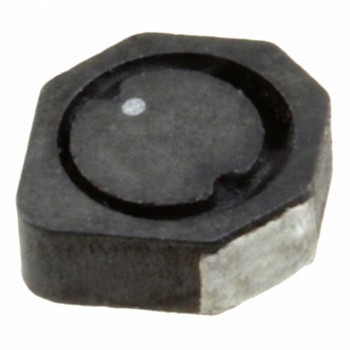

SD3112-2R2-R
PowerStor (Eaton)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.2UH 970MA 140 MOHM
- CategoryFixed Inductors
- Datasheet SD3112-2R2-R Datasheet
-
ECAD Model
- Share
In Stock: 200
Can ship immediately
Pricing:
- 1$0.795
- 4,100$0.795
Quote It
Technical Details
- Series:SD3112
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:2.2 µH
- Tolerance:±30%
- Current Rating (Amps):970 mA
- Current - Saturation (Isat):1.12A
- Shielding:Shielded
- DC Resistance (DCR):140mOhm
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.122" L x 0.122" W (3.10mm x 3.10mm)
- Height - Seated (Max):0.047" (1.20mm)
