PF0698.104NLT
PulseLarsen Antenna
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 100UH 1.6A 200 MOHM
- CategoryFixed Inductors
- Datasheet PF0698.104NLT Datasheet
-
ECAD Model
- Share
In Stock: 166
Can ship immediately
Pricing:
- 1$0.806
- 2,240$0.806
Quote It
Technical Details
- Series:PF0698NL
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:-
- Inductance:100 µH
- Tolerance:±20%
- Current Rating (Amps):1.6 A
- Current - Saturation (Isat):2.6A
- Shielding:Unshielded
- DC Resistance (DCR):200mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:4.8MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:-
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.510" L x 0.370" W (12.95mm x 9.40mm)
- Height - Seated (Max):0.445" (11.30mm)
Related Products

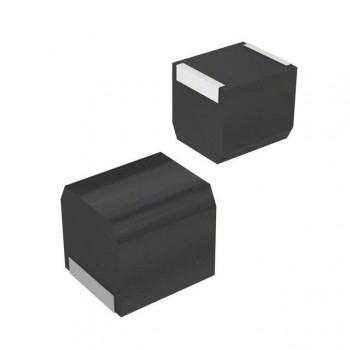

FIXED IND 82UH 270MA 1.4 OHM SMD
