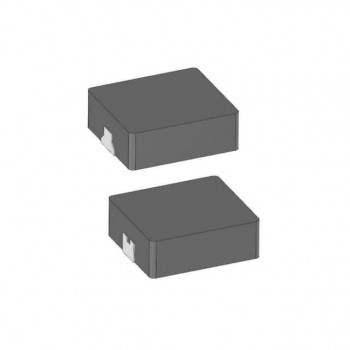

AMDLA1004Q-2R2MT
Abracon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.2UH 15A 6.7 MOHM SMD
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 134
Can ship immediately
Pricing:
- 1$0.83462
Quote It
Technical Details
- Series:AMDLA1004Q
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Molded
- Material - Core:Metal
- Inductance:2.2 µH
- Tolerance:±20%
- Current Rating (Amps):15 A
- Current - Saturation (Isat):20A
- Shielding:Shielded
- DC Resistance (DCR):6.7mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 155°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.433" L x 0.394" W (11.00mm x 10.00mm)
- Height - Seated (Max):0.157" (4.00mm)
