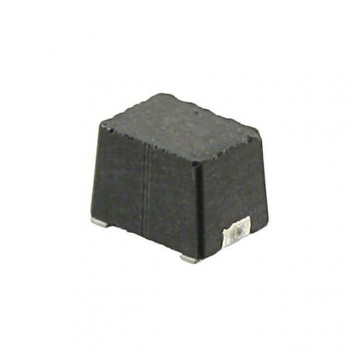

ISC1812BN101J
Vishay / Dale
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 100UH 147MA 3.25 OHM
- CategoryFixed Inductors
- Datasheet ISC1812BN101J Datasheet
-
ECAD Model
- Share
In Stock: 160
Can ship immediately
Pricing:
- 1$0.8784
- 500$0.8784
- 1,000$0.7808
- 2,500$0.7564
Quote It
Technical Details
- Series:ISC-1812
- Package:Bulk
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:100 µH
- Tolerance:±5%
- Current Rating (Amps):147 mA
- Current - Saturation (Isat):-
- Shielding:Shielded
- DC Resistance (DCR):3.25Ohm Max
- Q @ Freq:40 @ 796kHz
- Frequency - Self Resonant:7MHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:796 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1812 (4532 Metric)
- Supplier Device Package:1812
- Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
- Height - Seated (Max):0.134" (3.40mm)
