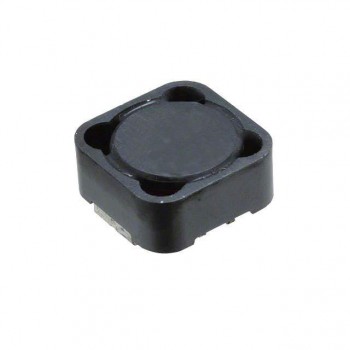

P1252.222NLT
PulseLarsen Antenna
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.2UH 12A 6.1 MOHM SMD
- CategoryFixed Inductors
- Datasheet P1252.222NLT Datasheet
-
ECAD Model
- Share
In Stock: 198
Can ship immediately
Pricing:
- 1$0.8835
- 2,100$0.8835
Quote It
Technical Details
- Series:P1252NL
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:-
- Inductance:2.2 µH
- Tolerance:±20%
- Current Rating (Amps):12 A
- Current - Saturation (Isat):20A
- Shielding:Unshielded
- DC Resistance (DCR):6.1mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 130°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.879" L x 0.596" W (22.33mm x 15.14mm)
- Height - Seated (Max):0.295" (7.49mm)
