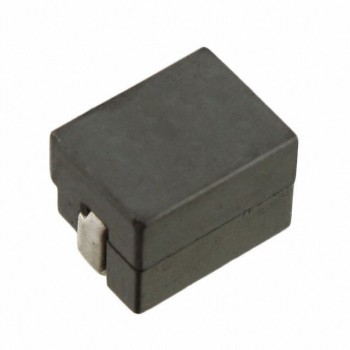

FP1006R1-R22-R

Technical Details

• Series:FLAT-PAC, FP1006
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Type:Wirewound
• Material - Core:Ferrite
• Inductance:220 nH
• Tolerance:±10%
• Current Rating (Amps):53 A
• Current - Saturation (Isat):38A
• Shielding:Unshielded
• DC Resistance (DCR):0.27mOhm

• Q @ Freq:-
• Frequency - Self Resonant:-
• Ratings:-
• Operating Temperature:-40°C ~ 125°C
• Inductance Frequency - Test:100 kHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.402" L x 0.315" W (10.20mm x 8.00mm)
• Height - Seated (Max):0.236" (6.00mm)
