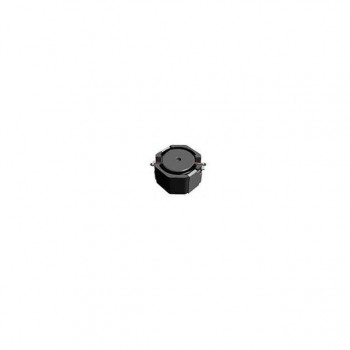

EST1060T1R5NDGA

Technical Details

• Series:ES, T Type
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Type:Wirewound
• Material - Core:Ferrite
• Inductance:1.5 µH
• Tolerance:±30%
• Current Rating (Amps):8 A
• Current - Saturation (Isat):9A
• Shielding:Shielded
• DC Resistance (DCR):7mOhm Max

• Q @ Freq:-
• Frequency - Self Resonant:93MHz
• Ratings:AEC-Q200
• Operating Temperature:-55°C ~ 150°C
• Inductance Frequency - Test:100 kHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.398" L x 0.394" W (10.10mm x 10.00mm)
• Height - Seated (Max):0.248" (6.30mm)
