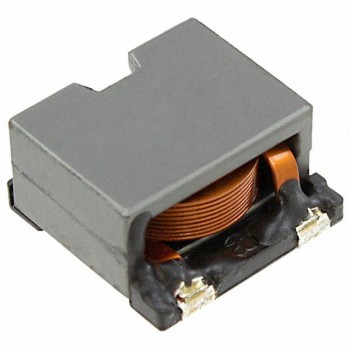

CDEP147NP-9R5MC-95
Sumida Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 9.5UH 8.5A 13.31 MOHM
- CategoryFixed Inductors
- Datasheet CDEP147NP-9R5MC-95 Datasheet
-
ECAD Model
- Share
In Stock: 139
Can ship immediately
Pricing:
- 1$0.952
- 600$0.952
Quote It
Technical Details
- Series:CDEP147
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:9.5 µH
- Tolerance:±20%
- Current Rating (Amps):8.5 A
- Current - Saturation (Isat):11.2A
- Shielding:Shielded
- DC Resistance (DCR):13.31mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.571" L x 0.571" W (14.50mm x 14.50mm)
- Height - Seated (Max):0.315" (8.00mm)
