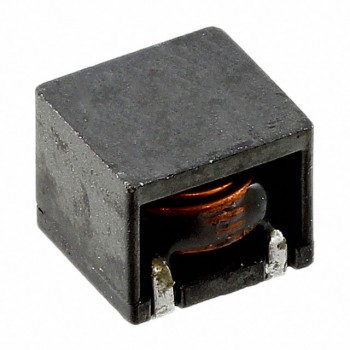

PM2202.821NLT
PulseLarsen Antenna
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 820NH 12A 12.7MOHM SMD
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 112
Can ship immediately
Pricing:
- 1$1.056
- 3,000$1.056
Quote It
Technical Details
- Series:PM2202.XXXNLT
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:-
- Material - Core:-
- Inductance:820 nH
- Tolerance:±20%
- Current Rating (Amps):12 A
- Current - Saturation (Isat):15A
- Shielding:Unshielded
- DC Resistance (DCR):12.7mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 155°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:SMD
- Size / Dimension:0.217" L x 0.209" W (5.50mm x 5.30mm)
- Height - Seated (Max):0.083" (2.10mm)
