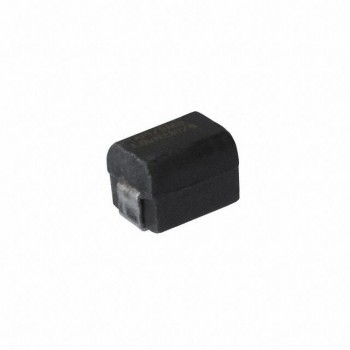

1812R-684J
API Delevan
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 680UH 82MA 30 OHM SMD
- CategoryFixed Inductors
- Datasheet 1812R-684J Datasheet
-
ECAD Model
- Share
In Stock: 163
Can ship immediately
Pricing:
- 1$1.0234
- 500$0.8976
Quote It
Technical Details
- Series:1812R
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:-
- Material - Core:Ferrite
- Inductance:680 µH
- Tolerance:±5%
- Current Rating (Amps):82 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):30Ohm Max
- Q @ Freq:30 @ 790kHz
- Frequency - Self Resonant:3MHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:790 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1812 (4532 Metric)
- Supplier Device Package:1812
- Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
- Height - Seated (Max):0.134" (3.40mm)
