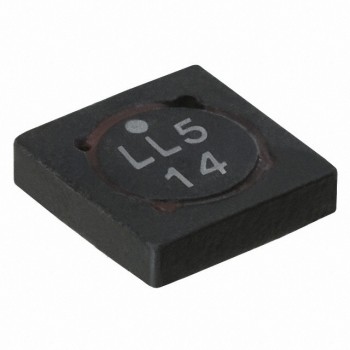

SD14-220-R
PowerStor (Eaton)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 22UH 806MA 385.3 MOHM
- CategoryFixed Inductors
- Datasheet SD14-220-R Datasheet
-
ECAD Model
- Share
In Stock: 195
Can ship immediately
Pricing:
- 1$1.0245
- 3,800$0.984
Quote It
Technical Details
- Series:SD
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:22 µH
- Tolerance:±20%
- Current Rating (Amps):806 mA
- Current - Saturation (Isat):793mA
- Shielding:Shielded
- DC Resistance (DCR):385.3mOhm
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 85°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.205" L x 0.205" W (5.20mm x 5.20mm)
- Height - Seated (Max):0.057" (1.45mm)
